The electric motor industry has experienced significant technological advancements over the past decade. As electric vehicles, industrial automation systems, and renewable energy applications continue to expand, manufacturers are constantly searching for ways to improve motor performance, efficiency, and reliability. One of the most important innovations in modern motor design is hairpin motor winding, a technology that is increasingly replacing conventional winding methods in high-performance applications.
While traditional winding techniques have been widely used for many years, the emergence of the hairpin winding motor has introduced new possibilities for achieving higher efficiency, improved thermal management, and greater power density. Understanding the differences between these two winding approaches is essential for manufacturers, engineers, and businesses involved in motor production.
Understanding Traditional Motor Winding
Traditional motor winding typically uses round copper wire that is wound into the stator slots to create electromagnetic coils. This method has been the industry standard for decades due to its simplicity and relatively low manufacturing costs.
In conventional winding systems, multiple strands of round wire are inserted into the stator slots and connected according to the motor design. The process can be performed manually or with the help of automated equipment, depending on production requirements.
Traditional winding remains a practical solution for many applications because it is flexible, cost-effective, and suitable for a wide range of motor sizes. However, as performance expectations continue to rise, manufacturers are increasingly encountering the limitations of this approach.
The gaps between round conductors reduce copper utilization within the stator slots, which can impact efficiency and power output. These limitations have encouraged the development of alternative winding technologies capable of delivering improved performance.
What Is Hairpin Motor Winding?

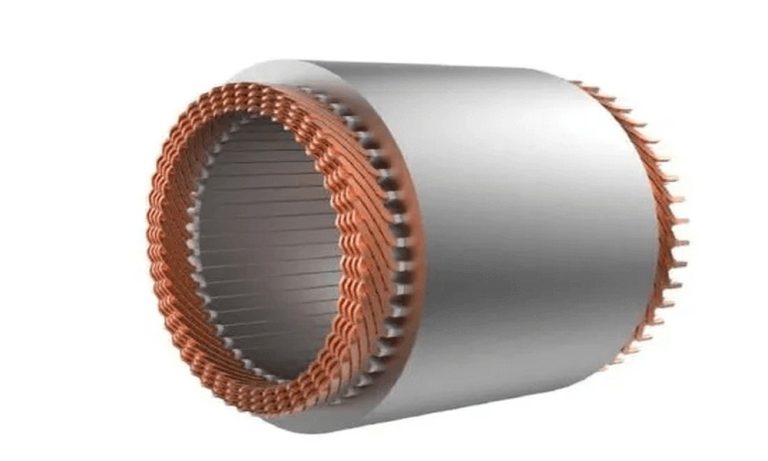

Hairpin motor winding is an advanced winding technology that utilizes rectangular copper conductors instead of traditional round wires. These conductors are pre-formed into hairpin shapes before being inserted into the stator slots.
Once inserted, the conductors are twisted and welded together to create a complete winding system. The rectangular design allows for a more efficient arrangement of copper within the stator, resulting in improved electrical and thermal characteristics.
The hairpin winding motor has become especially popular in electric vehicle manufacturing, where efficiency, compactness, and performance are critical design considerations. Many automotive manufacturers now use hairpin winding technology in their latest electric drive systems.
The ability to maximize copper density while maintaining precise manufacturing tolerances has made this technology one of the most significant advancements in modern motor production.
Slot Fill Factor: A Major Difference
One of the most noticeable differences between traditional winding and hairpin winding technology is the slot fill factor.
The slot fill factor measures how much of the available stator slot space is occupied by conductive material. Traditional round-wire windings leave small gaps between conductors because circular shapes cannot completely fill rectangular slot spaces.
Hairpin conductors, with their rectangular geometry, fit together more efficiently and utilize available space more effectively. This results in a significantly higher slot fill factor.
Higher copper utilization reduces electrical resistance and improves the motor’s ability to conduct current efficiently. As a result, motors with hairpin windings often deliver better performance and greater energy efficiency than comparable traditional designs.
For manufacturers seeking to maximize motor output without increasing physical size, this advantage is particularly valuable.
Efficiency and Energy Losses
Motor efficiency is one of the most important factors influencing performance and operating costs. Energy losses generated by electrical resistance can significantly impact overall system efficiency.
Traditional winding systems typically experience higher resistance because of their lower copper density. This resistance creates heat and reduces the amount of electrical energy converted into useful mechanical output.
Hairpin motor winding helps minimize these losses by increasing the amount of copper within the stator slots. Lower resistance improves electrical conductivity and enhances overall efficiency.
In electric vehicles, even small improvements in motor efficiency can contribute to increased driving range and reduced energy consumption. Similar benefits apply to industrial equipment, renewable energy systems, and automation applications.
As energy efficiency standards continue to become more demanding, manufacturers are increasingly turning to hairpin winding solutions to achieve performance goals.
Thermal Management Capabilities
Heat generation is a natural byproduct of motor operation. Effective thermal management is essential for maintaining performance, reliability, and component lifespan.
Traditional winding designs can experience uneven heat distribution due to variations in conductor placement and copper density. Excessive temperatures may reduce efficiency and accelerate component wear.
Hairpin winding technology offers superior thermal performance because of its compact conductor arrangement and improved heat transfer characteristics. The rectangular conductors create more effective thermal pathways within the stator.
Better cooling allows motors to operate at higher power levels while maintaining stable temperatures. This advantage is particularly important in demanding applications such as electric vehicles, industrial machinery, and high-performance drive systems.
Improved thermal management also contributes to longer service life and reduced maintenance requirements.
Manufacturing Process and Automation
The production methods used for traditional winding and hairpin winding differ significantly.
Traditional winding processes are generally simpler and may involve manual operations or semi-automated equipment. This flexibility makes traditional winding suitable for lower production volumes and specialized motor designs.
Hairpin winding requires highly precise forming, insertion, twisting, and welding operations. Because of this complexity, advanced automation systems are typically used throughout the manufacturing process.
Modern robotic equipment can perform these operations with exceptional accuracy and consistency. Automated production improves quality control while reducing labor requirements and production variability.
Although the initial investment in hairpin manufacturing equipment may be higher, the efficiency gains and production benefits often justify the cost for high-volume manufacturing environments.
Power Density and Motor Performance
Power density refers to the amount of power a motor can produce relative to its size and weight. Modern applications increasingly demand compact motors capable of delivering exceptional performance.
Traditional winding designs can face limitations when manufacturers attempt to increase power output without enlarging the motor structure.
Hairpin winding motors achieve higher power density through improved copper utilization and reduced electrical losses. This allows manufacturers to generate more torque and power from a compact motor package.
The ability to produce smaller, lighter, and more powerful motors has made hairpin technology particularly attractive in industries where space and weight are critical considerations.
Electric vehicles, aerospace systems, robotics, and advanced industrial machinery all benefit from these performance advantages.
Cost Considerations
Cost remains an important factor when selecting motor manufacturing technologies.
Traditional winding systems generally have lower equipment costs and simpler production requirements. This makes them suitable for many standard motor applications.
Hairpin winding technology often requires greater investment in specialized machinery, automation systems, and welding equipment. However, these costs can be offset by improved efficiency, higher productivity, and enhanced motor performance.
For high-volume production environments, the long-term operational benefits often outweigh the higher initial investment.
Manufacturers must evaluate both short-term costs and long-term value when deciding which winding technology best meets their needs.
The Future of Motor Winding Technology
The growing demand for electric mobility and energy-efficient systems is accelerating the adoption of advanced motor technologies worldwide.
Hairpin winding continues to gain popularity because it addresses many of the limitations associated with traditional winding methods. Ongoing developments in automation, welding technology, and manufacturing processes are making hairpin production even more efficient and cost-effective.
While traditional winding will continue to serve many applications, high-performance sectors are increasingly moving toward hairpin-based designs.
As industries pursue greater efficiency and sustainability, hairpin winding technology is expected to play an even larger role in future motor development.
Conclusion
Both traditional winding and hairpin winding technologies have important roles in electric motor manufacturing. Traditional winding remains a practical solution for many applications due to its simplicity and cost-effectiveness. However, modern performance requirements are driving increased interest in advanced winding methods.
Hairpin motor winding offers significant advantages in efficiency, thermal management, power density, and manufacturing consistency. These benefits make the hairpin winding motor an ideal choice for electric vehicles, industrial automation, renewable energy systems, and other high-performance applications.
As motor technology continues to evolve, hairpin winding is poised to become an increasingly important part of the industry’s future, helping manufacturers achieve higher levels of performance, reliability, and energy efficiency.
